Link DD-EX2 Double Deck System
Link DD-EX2 Double Deck System | MortuaryMall.com

Click below for other views:
List Price: $13,186.00
Our Price: $12,199.95
You Save: $986.05


Availability: Usually Ships in 5 to 6 Weeks

Product


Accessories


Vehicle


Vehicle Year

Please provide your vehicle's year.


Quantity:
Description Literature Video

The DD-EX2 Double Deck System is manufactured by Link Manufacturing, which has developing innovative products for the transportation industry for over 30 years. The DD-EX2 Double Deck System is the only double deck system engineered to fit a mid-sized cargo van. The system allows four cots, three cremation containers, or two air trays to be transported safely by one person. The system increases vehicle efficiency by doubling the carrying capacity while minimizing mileage costs required for multiple transport trips. The powered upper deck raises and lowers within seconds, enabling one operator to easily load and transport. Interchangeable and adjustable bier pins and polyethylene glide strips allow the management of different tray and container sizes on both decks. Recessed cot cups allow for the safe secure transport of stretchers. From capability to overall cost, the DD-EX2 is built to serve a mortician’s bottom line. The system will prove to increase operation efficiency and maintain the highest standards of professionalism for funeral homes with transportation and cremation services. Bier pins sold separately.

PLEASE NOTE: The customer is responsible for having a loading dock and/or a forklift available at the shipping address to be able to accept delivery.

Features

  • Increase the carrying capacity of a mid-sized cargo van with the transportation of either four cots, three cremation containers or two air trays
  • Comes with bier pin plates, cot cups and glide strips making loading and securing easy while protecting the vehicle from damage
  • High impact, fold down ramp protects the rear of your vehicle, as well as assists in loading and unloading mortuary cots and containers
  • Upper deck raises and lowers within seconds, allowing one person to easily load and transport
  • Made of extruded aluminum and sealed fiberglass, both protecting the vehicle and allowing for sanitation
  • Reinforced frame with simplified lifting geometry creates a durable double deck system with a 600 lb. capacity on the upper deck
  • WARRANTY: 1 year from the date the product was sold to its original enduser or 15,000 miles, whichever occurs first

Technical Specs

  • Manufacturer SKUs: 7223B003 (Mercedes Metris SWB) or 7223B001 (Mercedes Metris LWB)
  • Dimensions: 91.25" L x 60.50" W (Mercedes Metris SWB)
  • Dimensions: 99.25" L x 60.50" W (Mercedes Metris LWB)
  • Lower Deck Max Load Dimensions: 87.98" L x 48.73" W (Mercedes Metris SWB)
  • Lower Deck Max Load Dimensions: 95.98" L x 49.25" W (Mercedes Metris LWB)
  • Upper Deck Max Load Dimensions: 81.48" L x 47.23" W (Mercedes Metris SWB)
  • Upper Deck Max Load Dimensions: 90.48" L x 47.23" W (Mercedes Metris LWB)
  • Upper Deck Weight Capacity: 600 lbs. (Mercedes Metris SWB and Mercedes Metris LWB)
  • Weight: 536.00 lbs. (Mercedes Metris SWB)
  • Weight: 560.00 lbs. (Mercedes Metris LWB)
  • Tie Down Method: Bolted Down (Mercedes Metris SWB and Mercedes Metris LWB)

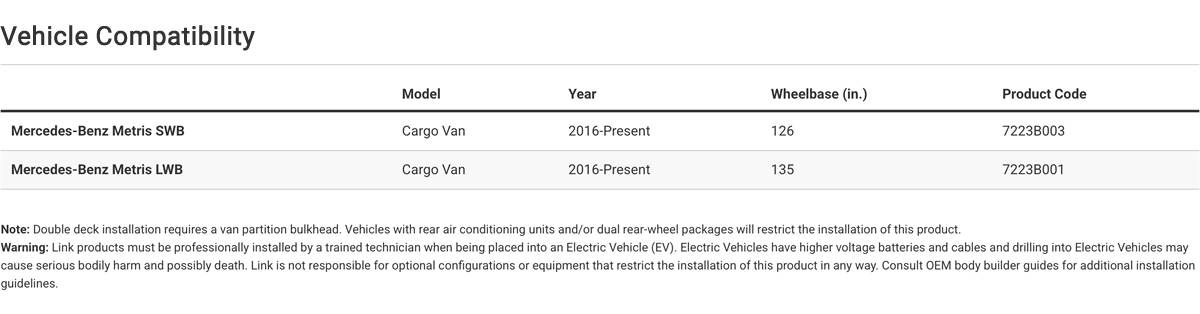

Vehicle Fit List (See Link's Vehicle Compatibility chart at the bottom of the page for complete details)

  • Mercedes Metris Cargo Van - Standard Wheelbase (SWB)
  • Mercedes Metris Cargo Van - Long Wheelbase (LWB)

Shipping

    Link usually ships this product in 5 to 6 weeks depending on availability. Please call us before ordering if you need to know a more accurate shipping date for this product.

Shipping Rate

    Our website is unable to accurately calculate shipping rates for the DD-EX2 Double Deck System, so the $1,400.00 per unit shipping rate that appears during the checkout process for this product is only a "worst case scenario" estimate. Upon shipment of this product, your credit card will only be charged the actual shipping rate as provided by Link Manufacturing. If you need to know the actual shipping rate for this product before placing an order, please call us and we will be happy to get that information for you.

Sales Tax

    Link Manufacturing requires us to collect state and/or local sales tax from our customers who purchase Link products and who are located in any of the following states: CA, IL, MO, PA. However, our website is unable to calculate sales tax per product per state. So, if you purchase any of Link's products and are located in any of the states listed, we will contact you with the sales tax that is due Link. You will be responsible for paying MortuaryMall.com any/all applicable state and/or local sales taxes prior to shipment by Link Manufacturing.
